Pipe Screens

Product Opening O. D. Docs

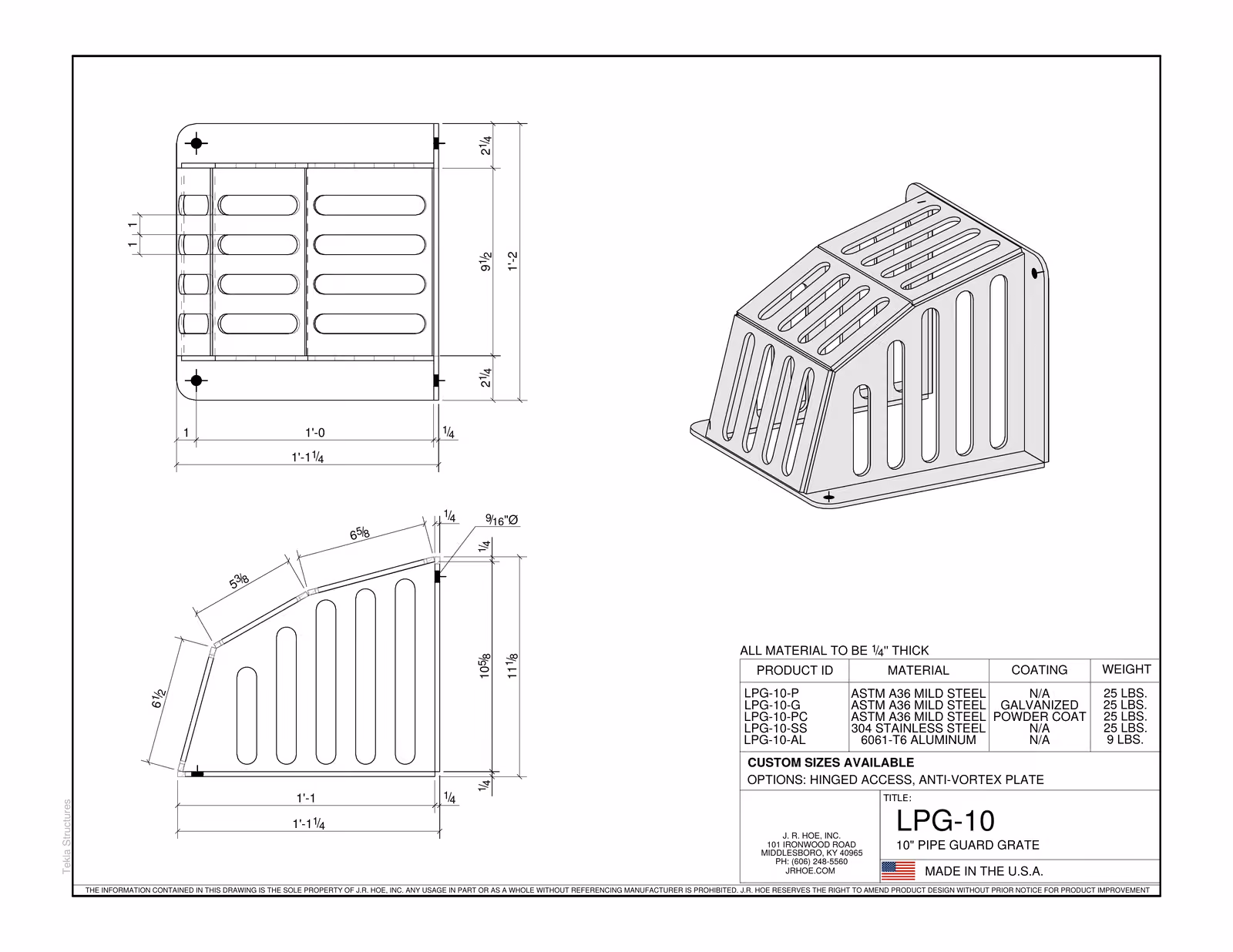

LPG-10 10” 14”

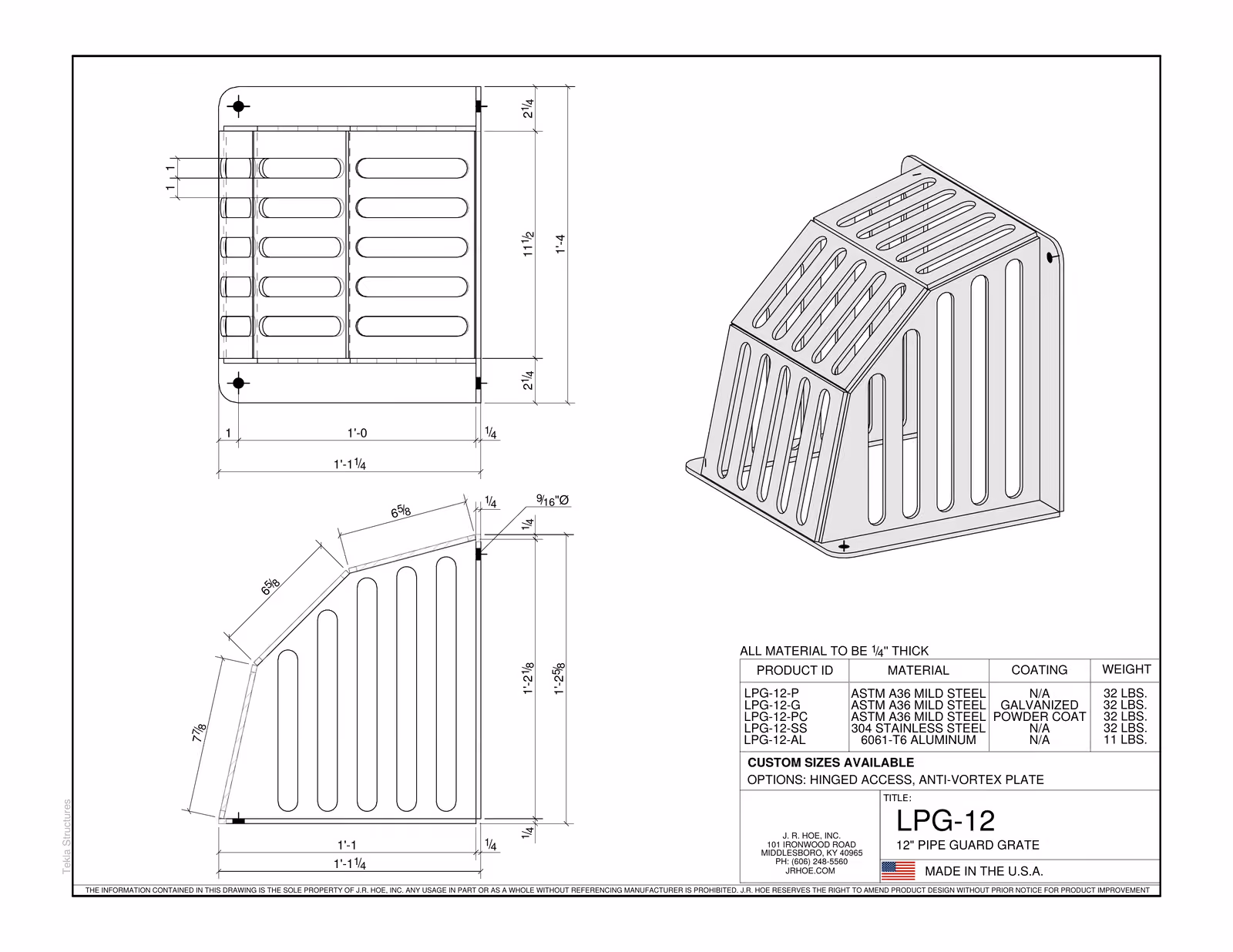

LPG-12 12” 16”

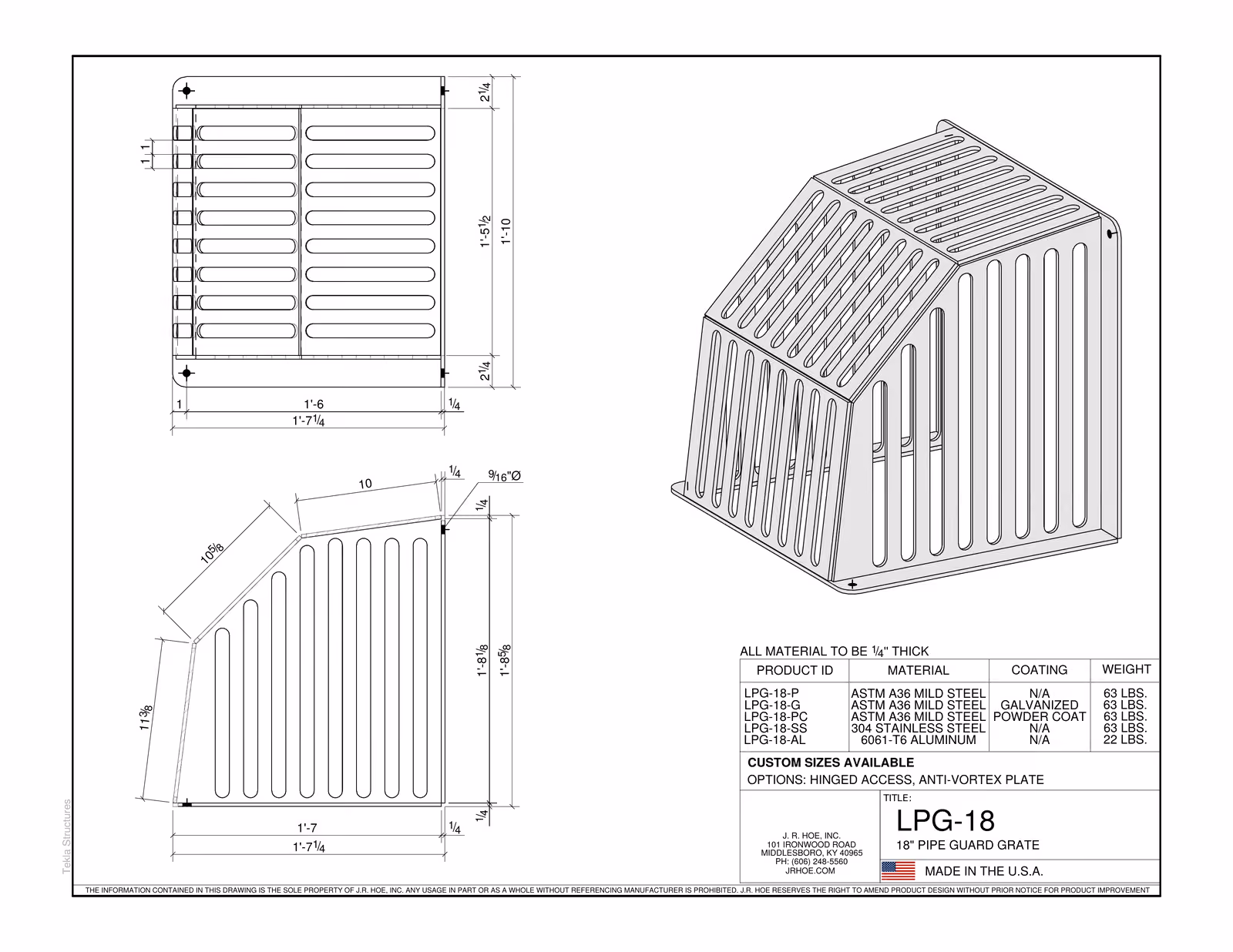

LPG-18 18” 22”

Product Drawing

Click Image To Zoom

Materials/Finishes Weight
Mild Steel (No Finish) 24.90 lbs.
Mild Steel (Galvanized) 24.90 lbs.
Stainless Steel 24.90 lbs.
Aluminum 8.41 lbs.

Product Description

Primarily used to prevent debris from entering drainage pipes on outlet control structures or in loading docks, this design is widely used to promote effective drainage and prevent blockages and clogging. Various standard sizes are offered in mild steel with galvanized or powder coat finish, and in stainless steel or aluminum.


*AutoCAD Drawings Available Upon Request
